USE YOUR CAC ON A CHROME Operating System computer

Chrome OS logo



Utilizing your CAC with Chrome OS "may" work if you follow these instructions

You should be able to access most CAC enabled websites.  However, I am unable to find Adobe Reader to be able to digitally sign PDF forms or for people to access any Citrix type website (example: Desktop Anywhere)

NOTE:  The issue that started mid December 2023 with not being able to access Army365 / AirForce365 / Navy365 / DoD365 / any other *365 email (including Teams) seems to have been resolved in early February 2024 with the latest update to Chrome OS.  Please make sure you are running at version: 120.0.6099.272 (or newer).

NOTE:  This was last tested / validated on 03 Marchy 2024 with Chrome OS version 120.0.616.212 using an SCM Microsystems  SCR-3310 v2.0 CAC reader with the GEMALTO DLGX4 128Kv2 CAC utilizing the CSSI Smart Card Connector (available below)

NOTE2: Starting with the 103.0.5060.132 version, Google has made this process much longer, it used to only need 4 files below.  Now you see many more.

Step 1: Download these 35 DoD certificate files to your computer



Your version must be 103.0.56060.132 and newer to download the 35 files below (if your version is BEFORE 103.0.56060.132, go here:

DoD Derility CA-1

DoD Derility CA-3

DoD Derility CA-4

DOD EMAIL CA-59

DOD EMAIL CA-62

DOD EMAIL CA-63

DOD EMAIL CA-64

DOD EMAIL CA-65

DOD EMAIL CA-70

DOD EMAIL CA-71

DOD EMAIL CA-72

DOD EMAIL CA-73

DOD ID CA-59

DOD ID CA-62

DOD ID CA-63

DOD ID CA-64

DOD ID CA-65

DOD ID CA-70

DOD ID CA-71

DOD ID CA-72

DOD ID CA-73

RootCert3.p7b,

RootCert4.p7b

RootCert5.p7b

RootCert6.p7b

DOD SW CA-60

DOD SW CA-61

DOD SW CA-66

DOD SW CA-67

DOD SW CA-68

DOD SW CA-69

DOD SW CA-74

DOD SW CA-75

DOD SW CA-76, and

DOD SW CA-77



If you have a version BEFORE 103.0.5060.132 use these 4 files:

AllCerts.p7b,

RootCert3.p7b,

RootCert4.p7b

RootCert5.p7b and

RootCert6.p7b

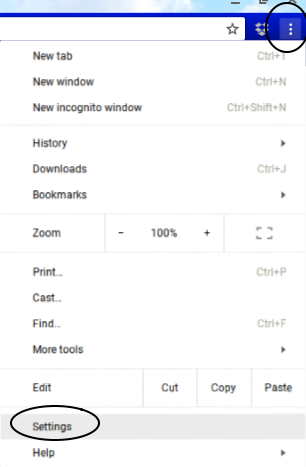

Step 2: To install the certificates in Chrome, select the 3 dots (top right of web browser), select Settings

Options, Settings

 .

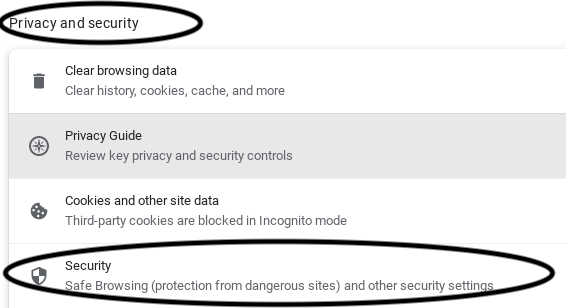

Step 3: Select Privacy and security (left side of screen),

.

Scroll down to Privacy and Security, then select Security

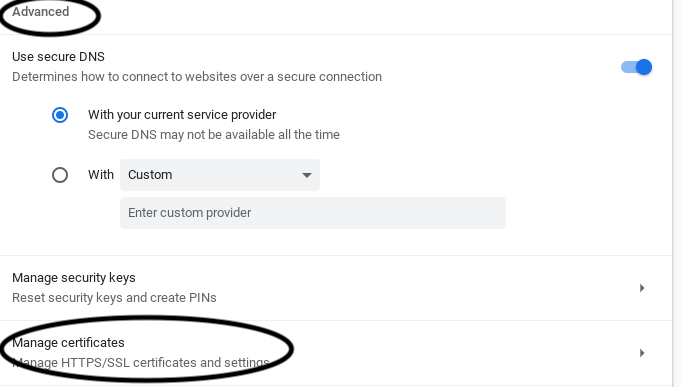

Step 4: Scroll down and click on Manage device certificates under Advanced

ChromeOS Advanced

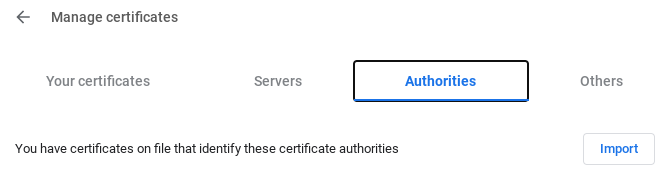

 Step 5: Click the Authorities (tab)

Manage Certificates



.



 Step 6: Click IMPORT

Import





Step 7: Navigate to the folder you downloaded the above files to, then change the drop down (found in lower left corner of page) to:  All files

All Files

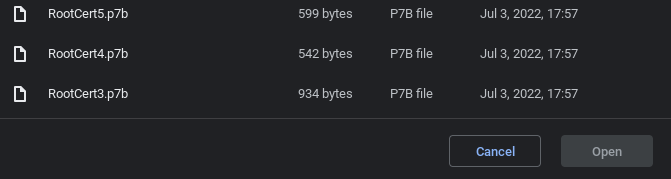

 Step 8: Select RootCert5.p7b, then click OPEN

NOTE:  Install the files in this order:

RootCert5.p7b,

RootCert4.p7b,

RootCert3.p7b,

AllCerts.p7b, or now each of the remaining certificates

by selecting each and clicking OPEN

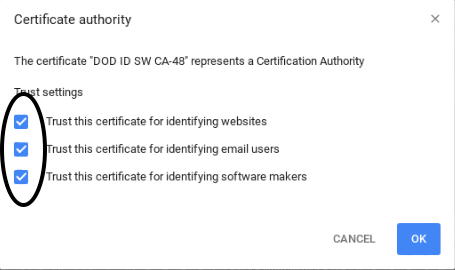

Step 9: Check all three boxes under Trust settings, click OK

3 boxes





Step 10: Install the other files you downloaded by going back to IMPORT

Import





Step 11: Repeat steps 7, 8, & 9 for each of the downloads

Reminder to OPEN in this order:

RootCert6.p7b,

RootCert5.p7b,

RootCert4.p7b,

RootCert3.p7b,

and finally AllCerts.p7b or now each of the remaining certificates by selecting each and clicking OPEN

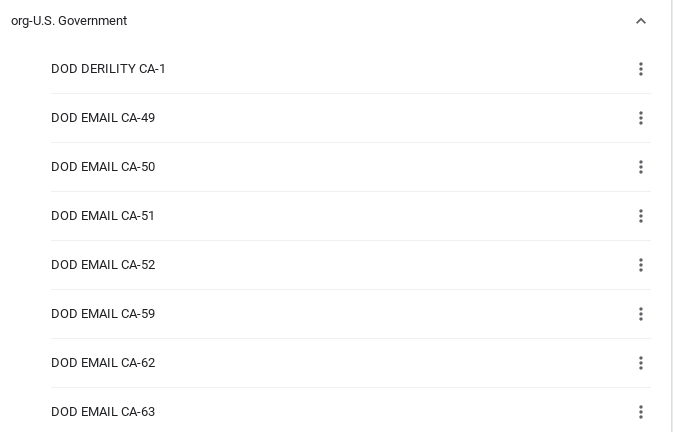

Step 12: To verify all certificates installed...  Stay in the AUTHORITIES (tab), scroll down to org-U.S. Government, the certificates listed below should be there:

DOD DERILITY CA-1

DOD EMAIL CA-59,

DOD EMAIL CA-62 through DOD EMAIL CA-65,

DOD EMAIL CA-70-73,

DOD ID CA-59,

DOD ID CA-62 through DOD ID CA-65,

DOD ID CA-70-73,

DoD Root CA 3 through DoD Root CA 6,

DOD SW CA-60 through DOD SW CA-61,

DOD SW CA-66 through DOD SW CA-69, and

DOD SW CA-74-77



Step 13: All of the DoD certificates are now installed, the next step is to install DriveLock Smart Card Middleware (CSSI).  DriveLock requires two separate apps be installed.

NOTE:  DriveLock Smart Card Middleware (CSSI) has worked more consistently (in my tests)

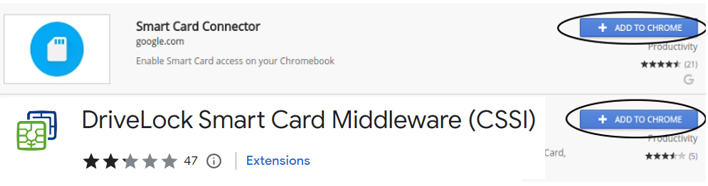

Download DriveLock Smart Card Middleware from the Chrome webstore: https://chrome.google.com/webstore/detail/drivelock-smart-card-midd/haeblkpifdemlfnkogkipmghfcbonief?hl=en



Download Smart Card Connector from the Chrome webstore:

https://chrome.google.com/webstore/detail/smart-card-connector/khpfeaanjngmcnplbdlpegiifgpfgdco?hl=en



Select + ADD TO CHROME on each app





Click the Add app (button)

Add App

When going to CAC enabled sites, it is a little slow

I used an SCR-3310 v2.0 CAC reader

You may have to Allow the app



Step 14: RESTART Your computer



If you'd like to let me know of your success, fill out this form.



How to test DriveLock accessing your card:

Double click the DriveLock SmartCard Middleware (CSSI) app on your computer

When open, it should show your Connected reader

Click on the Test now (button) to the right of Functionality test

Enter your Smart Card PIN and click OK

You should receive a "Test successful"





Alternate Step 13: NOTE: CACKey is another program you can use.  DO NOT install both CSSI and CACKey.

NOTE:  I have found CSSI to work more consistently than CACKey.

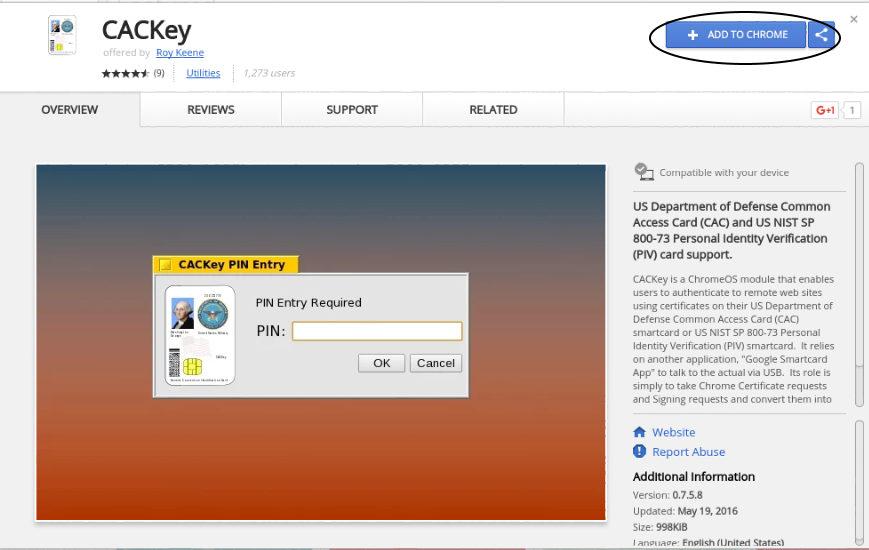

CACKey is available by going to this webstore link:  https://chrome.google.com/webstore/detail/cackey/lpimdiknnpijeigckalekdccibdmeojg

Select the + ADD TO CHROME (button)

CACkey

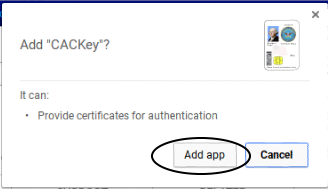

Click the Add app (button)

Add App





When you want to use it, select LAUNCH APP



NOTE: If you are unable to access your DoD websites...

  I have been informed by some personnel that they had to use Incognito mode to access some DoD websites.  If you want to try this:

Option 1:  Click <shift> <ctrl> <n>

Option 2: "Double finger tap" on the Chrome browser icon in the taskbar



Step 15: When selecting your CAC certificate, make sure you select the one without the word EMAIL in it.  As all DoD websites are using the Authentication certificate.



NOTICE:

Many Navy, Marine, and Air Force Mac users are having issues accessing their email via OWA and a few other CAC specific websites once getting a new CAC (or when migrated to O365).  I have not found a fix for Chrome OS users.



PLEASE COMPLETE THIS FORM FOR Chrome SUPPORT ONLY AFTER following the steps / ideas above

Many people are going straight to this form and not following instructions above

Windows Users go here

Mac Users go here

Linux Users go here



For anyone who missed this NOTE above:  The issue that started mid December 2023 with not being able to access Army365 / AirForce365 / Navy365 / DoD365 / any other *365 email (including Teams) seems to have been resolved in early February 2024 with the latest update to Chrome OS.  Please make sure you are running at version: 120.0.6099.272 (or newer).
